ADHESIVE COATING MACHINE
ADHESIVE COATING MACHINE
Main Characteristics
1、 The speed of the host and the speed of glue supply can be adjusted manually or tracked automatically and synchronously.2、 All active rollers and passive guide wheels are calibrated by high-precision dynamic balancing equipments, supplemented byreasonable installation process, which makes the whole machine run smoothly, with low noise, and the composite materials arenot wrinkled and have good effect.
3. High precision alloy die head and high precision metering gear pump ensure high quality coating effect.
4、 The equipment can be equipped with special PUR hot melt adhesive machine, so that the equipment for high-grade materialcomposite.
Range ofApplication

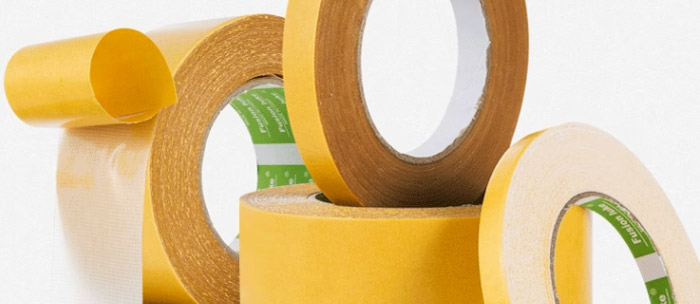

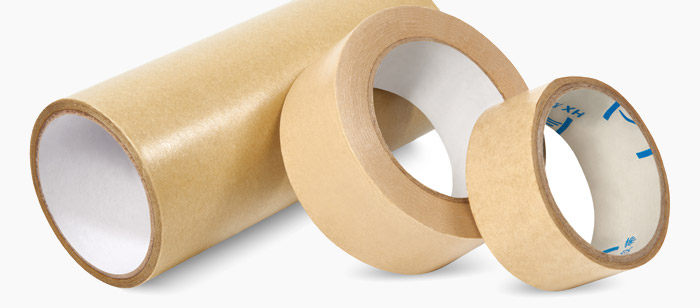

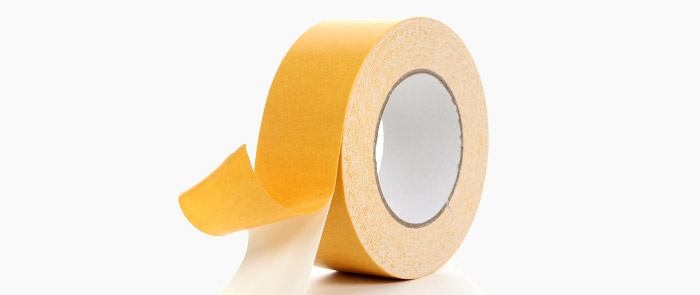

JYT-B hot melt adhesive coating machine is mainly used in the production of double-sided adhesive tape, cloth-based adhesivetape, double-sided foam tape, cleaning tape, kraft tape, striped paper tape aluminum foil tape, fiber tape, materials medicaauxiliary tape, low-temperature hot melt adhesive film and the composite of various materials such as non-woven fabrics, fitermaterials,medical materials and so on.
TECHNICAL PARAMETERS | |
Model | JYT-B |
Coating Width | 400-2000MM |
Coatinig Weight | 10-200g/㎡ |
Coating Speed | 0-50m/min |
Unwind Diameter | 1000mm |
Rewind Diameter | 700mm |
